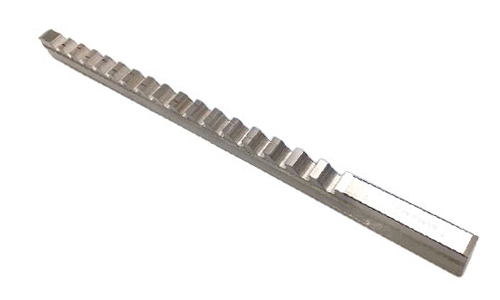

Push-Type Keyway Broaches

DIC is a Manufacturer and Exporter of Push Type Keyway Broaches supplied with necessary shims. Push Type Keyway Broaches feature the most common Metric Sizes from 2mm to 45mm. It should keep in mind that Broach and Bushing styles must match. We are fully equipped to supply special Push Type Keyway Broaches to your specifications. These Broaches are available in Inch as well as Metric sizes. We can provide all standard and non-standard sizes per specific requirements.

Product Description
Product Table

TECHNICAL SPECIFICATIONS:

Material: HSS M2, M-35 and M3 Class 2 Grade Steel
Keyway Broach with Shims
Length: up to 1.6 meter
Broach Length: 127mm to 515 mm
Type: Push and Pull Type

Broach Size	Style	Tolerances	Broach Dimensions	Std. mm Keys	Shims Req'd	Tooth Pitch	No. of Teeth	Length of Cut min.-max.	Pressure (lbs.)
2	A	.0782-.0791	1/8 x5	2 x 2	-	3/16	18	13/64 - 1 1/8	720
3	A	.1176-.1185	1/8 x5	3 X 3	1	3/16	18	13/64 - 1 1/8	650
4	B1	.1569-.1579	1/4 X 6 3/4	4 X 4	1	9/32	16	19/64 - 1 11/16	1140
5	B1	.1963-.1972	1/4 X 6 3/4	5 X 5	1	9/32	16	19/64 - 1 11/16	1860
5	C	.1963-.1972	3/8 X 11 3/4	5 X 5	1	3/8	22	25/64 - 2 1/2	1470
6	C	.2356-.2366	3/8 X 11 3/4	6 X 6	1	3/8	22	25/64 - 2 1/2	2100
7	C	.2749-.2763	3/8 X 11 3/4	7 x 6	1	3/8	22G	25/64 - 2 1/2	2900
8	C	.3143-.3155	3/8 X 11 3/4	8 X 7	2	3/8	22	25/64 - 2 1/2	3680
10	d	.3930-.3942	9/16 X 13 7/8	10 X 8	2	5/8	17	1 - 6	6500
12	D	.4716-.4730	9/16 X 13 7/8	12 X 8	2	5/8	17	1 - 6	8400
14	D	.5503-.5517	9/16 X 13 7/8	14 X 9	2	5/8	17	1 - 6	11100
16	E	.6290-.6304	3/4 X 15 1/2	16 X 10	3	5/8	20	1 - 6	9400
18	E	.7078-.7092	3/4 X 15 1/2	18 X 11	3	5/8	20	1 - 6	10600
20	F	.7864-.7880	1 X 20 1/4	20 X 12	3	5/8	26	1 - 6	8800
22	F	.8651-.8667	1 X 20 1/4	22 X 14	4	5/8	26	1 - 6	9400
24	F	.9439-.9455	1 X 20 1/4	24 X 14	5	5/8	26	1 - 6	10600
25	F	.9832-.9848	1 X 20 1/4	25 X 14	4	5/8	26	1 - 6	12300
28	-	1.1025-1.1035	1 1/8 x 20 1/4	28 x 16	5	5/8	26	1 - 6	12000
32	-	1.2600-1.2610	1 1/4 x 20 1/4	32 x 18	5	3/4	22	1 1/2 - 8	20600
36	-	1.4175-1.4185	1 7/16 x 20 1/4	36 x 20	7	3/4	22	1 1/2 - 8	24200
40	-	1.5753-1.5760	1 9/16 x 20 1/4	40 x 22	7	3/4	22	1 1/2 - 8	22500
45	-	1.7718-1.7728	1 3/4 x 20 1/4	45 x 25	8	3/4	22	1 1/2 - 8	27200
