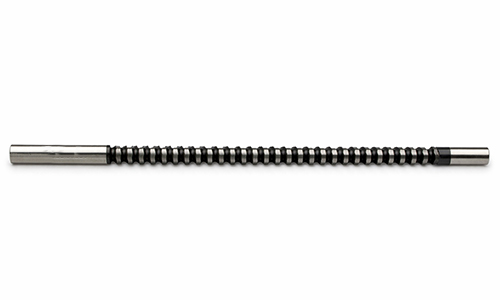

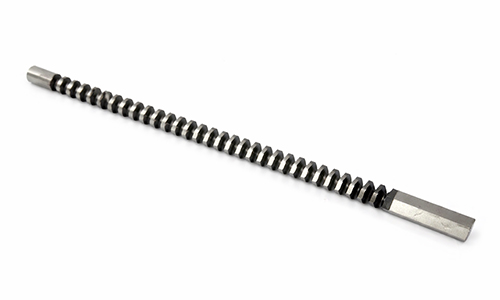

Hexagon Broaches

We are a Manufacturer and Exporter of Hexagon Broaches, designed to generate a hexagon hole in a drilled round hole in one pass. Our Hex Broaches are available in both Inch and Metric sizes as well as in all types of Surface Coatings. We are Fully Equipped with the latest Technology for manufacturing Broaches. The material used for hexagon Broaches is HSS M2,M35,M42,ASP 2030, ASP 2052, ASP2062. These are well suited for use in a variety of ferrous and non-ferrous materials.

Product Description
Product Table

We can supply any standard or custom Hexagon Broach in a very short time.

Material: HSS M2,M35,M42,ASP 2030, ASP 2052, ASP2062
Thickness: 10-20mm, 20-40mm, 60-80mm, 80-100mm
Available in both Inch and metric sizes
Usage: Automobiles Industry
Available in all standard coatings.
Hardness: 63-65 HRC
Finish Coating: Bright

Hex Size	Tolerance	Pilot Diameter	Drill Size	Dimension Across Corners	Tooth Pitch	Broach Length	Min. Length of Cut	Max. Length of Cut
1/8"	.1255-.1260	1/8"	1/8"	.1450-.1470	1/8"	4-1/8"	3/16"	3/8"
5/32"	.1565-.1570	5/32"	5/32"	.1800-.1820	1/8"	4-15/16"	1/4"	1/2"
3/16"	.1880-.1890	3/16"	3/16"	.2145-.2155	5/32"	5-1/16"	1/4"	5/8"
7/32"	.2190-.2200	7/32"	7/32"	.2500-.2520	5/32"	5-3/8"	1/4"	3/4"
1/4"	.2505-.2515	1/4"	1/4"	.2865-.2875	3/16"	6"	1/4"	3/4"
9/32"	.2815-.2825	9/32"	9/32"	.3220-.3240	3/16"	7-1/4"	5/16"	1"
5/16"	.3130-.3140	5/16"	5/16"	.3580-.3590	7/32"	7-3/4"	3/8"	1"
11/32"	.3440-.3450	11/32"	11/32"	.3950-.3970	7/32"	7-3/4"	3/8"	1-1/4"
3/8"	.3755-.3765	3/8"	3/8"	.4300-.4310	7/32"	8-1/2"	3/8"	1-1/4"
13/32"	.4065-.4075	13/32"	13/32"	.4670-.4690	1/4"	9-5/8"	1/2"	1-3/8"
7/16"	.4385-.4395	7/16"	7/16"	.5020-.5030	9/32"	10-5/8"	1/2"	1-3/8"
15/32"	.4690-.4700	15/32"	15/32"	.5390-.5410	9/32"	11-7/8"	1/2"	1-3/8"
1/2"	.5005-.5015	1/2"	1/2"	.5740-.5750	9/32"	11-7/8"	1/2"	1-3/8"
9/16"	.5630-.5640	9/16"	9/16"	.6480-.6500	5/16"	13-3/4"	1/2"	1-3/8"
5/8"	.6260-6270	5/8"	5/8"	.7170-.7185	3/8"	16-1/4"	5/8"	2"
11/16"	.6880-.6890	11/16"	11/16"	.7930-.7950	3/8"	16-3/4"	5/8"	2"
3/4"	.7510-.7520	3/4"	3/4"	.8610-.8625	3/8"	17-1/4"	5/8"	2"
7/8"	.8765-.8775	7/8"	7/8"	1.0085-1.0095	3/8"	18-1/2"	5/8"	2"
1"	1.0020-1.0030	1"	1"	1.1520-1.1530	3/8"	19-3/4"	5/8"	2"
