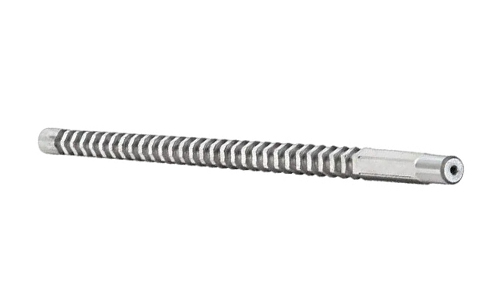

HSS Hexagon Push Broaches (Metric)

HSS Hexagon Push Broaches (Metric)

We are Supplier and Exporter of HSS Hexagon Push Broaches Metric type. These are designed to generate a hexagonal hole in a previously cast or drilled round hole in one pass. These are available in both Inch and Metric sizes. Broaches are suitable for use in a variety of ferrous as well as non-ferrous materials. Hexagon Push broaches is sized to afford a good cutting range and rigidity. These are available in all types of PVD Coatings, i.e., TiN, TiCN, etc., with all required standards. We can also supply HSS Broaches as per customer requirement of material and size. DIC Broaches are available in all standard as well as non-standard profiles.

    SPECIFICATIONS AND FEATURES:
  • Material: HSS M2, M35, M42, ASP 2030, ASP 2052, ASP 2062
  • Hex size: 4mm – 25mm
  • Broach Length: 5-1/2” – 19-7/8”
  • Tolerance: .1580” to .9858”
  • Diagonal dimensions: .1820” to 1.1333”
  • Minimum length of cut: 1/4" to 5/8”
  • Maximum length of cut: 1/2” to 1-5/8”
  • Can be supplied with all types of PVD Coatings and standards
  • Type: Push Type
  • Profile: Standard and Non-Standard
HSS Hexagon Push Broaches (Inch)LENGTH OF CUT
Hex SizeTolerance .0005-.0010"Diagonal DimensionsBroach LengthPilot Dia.Drill SizeMin.Max.
4mm.1580"-.1585".1820"-.1830"5-1/2".1575"4mm1/4"1/2"
5mm.1973"-.1983".2270"-..2280"6".1968"5mm1/4"3/4"
6mm.2367"-.2377".2730"-.2740"6-1/2".2362"6mm1/4"3/4"
7mm.2760"-.2770".3180"-.3190"7-3/4".2756"7mm3/8"1"
8mm.3155"-.3165".3643"-.3644"8-1/4".3150"8mm3/8"1"
10mm.3942"-.3952".4543"-.4553"10".3937"10mm1/2"1-3/8"
12mm.4729"-.4739".5452"-.5462"12-3/8".4724"12mm1/2"1-3/8"
14mm.5517"-.5527".6332"-.6342"14-1/4".5512"14mm1/2"1-1/2"
16mm.6310"-.6320".7248"-.7258"16-7/8".6230"16mm5/8"1-5/8"
18mm.7092"-.7102".8150"-.8160"17".7087"18mm5/8"1-5/8"
20mm.7879"-.7889".9094"-.9059"17-7/8".7874"20mm5/8"1-5/8"
22mm.8666"-.8676".9958"-.9968"18-7/8".8661"22mm5/8"1-5/8"
24mm.9454"-.9464"1.0868"-1.0878"19-7/8".9449"24mm5/8"1-5/8"
25mm.9848"-.9858"1.1323"-1.1333"19-7/8".9842"25mm5/8"1-5/8"
