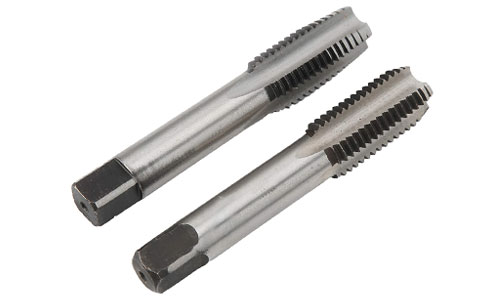

Straight Flute Taps

We are Supplier of Straight Flute Taps, also known as “Hand Taps” which are designed for short chipping materials, such as cast iron. Straight Flute Taps are harder than high speed steel, cobalt, and powdered-metal straight flute taps. These taps provide excellent hear resistance and can be used for tapping hard materials at high speeds. Straight Flute Tap are rotated into a hole to create threads, the chip moves into the flutes but is not evacuated.

The Taps are suitable for both through and blind holes. The chips produced are short or powder type with the help of a special design provided in the tap.

Technical Specification
Material	HSS M2, M35, M42, ASP 2030, ASP 2052
Flute Type	Straight Flute
Number of Flutes	3–4 flute
Hardness	62–65 HRC
Size Range	M2 – M50 (or as required)
Helix Angle	0° (Straight)
Surface Treatment	Bright / Steam Oxide / TiN / TiCN / AlCrN
Application	Through Hole / Blind Hole
Customization	Available

Designed for Precision, Stability, and Versatile Applications

Straight Flute Taps feature a traditional flute design that provides stable cutting action and excellent control during threading. This design is particularly effective for short-chipping materials and blind or through-hole applications requiring consistent thread formation.
The taps are manufactured with accurately formed thread profiles to ensure consistent pitch, depth, and fit. This uniform geometry produces clean, reliable threads that meet assembly requirements and reduce the risk of rework or component failure.
Straight Flute Taps perform effectively on a wide range of materials, including mild steel, carbon steel, cast iron, brass, and aluminum. This versatility makes them ideal for general engineering and workshop use.
The straight flute construction offers excellent rigidity and alignment during tapping. This minimizes the risk of thread deviation or misalignment, ensuring accurate thread positioning even in manual tapping operations.
These taps are especially effective in materials that produce small or broken chips. Controlled chip formation helps prevent clogging and improves surface finish during threading operations.
The robust design and balanced cutting geometry help distribute cutting forces evenly. This reduces stress on the tap, lowering the chances of tool breakage during demanding or repetitive tapping applications.
Precision grinding and proper edge preparation result in smooth flute surfaces. This reduces friction during cutting, improves thread finish, and enhances overall tapping efficiency.
Straight Flute Taps are suitable for use in hand tapping, drilling machines, tapping machines, and CNC setups. This adaptability makes them a practical choice across varied production environments.
Available in multiple sizes and thread standards, Straight Flute Taps meet diverse industrial and export requirements, ensuring compatibility with both domestic and international engineering specifications.

Built on Experience, Precision Manufacturing, and Technical Know-How

Our expertise is rooted in the specialized manufacturing of threading tools. Years of focused production experience allow us to understand cutting behavior, tool geometry, and application challenges, ensuring reliable Straight Flute Tap performance.
We operate modern manufacturing facilities equipped with CNC grinding machines and precision inspection equipment. This infrastructure ensures dimensional accuracy, consistent quality, and repeatable production across all tap sizes.
Our team consists of trained engineers and technicians with in-depth knowledge of tooling design and machining processes. Their expertise supports continuous improvement and consistent product performance.
Every stage of production is governed by strict process controls, from raw material selection to final inspection. This ensures uniform quality and reliable performance across production batches.
We refine our Straight Flute Taps based on real-world machining feedback. This application-driven approach helps ensure reliable performance across different materials, machines, and working conditions.
With extensive experience serving international customers, we understand global quality expectations, documentation standards, and performance requirements for export-oriented manufacturing.
We regularly evaluate and improve manufacturing methods, tooling designs, and inspection processes. This commitment helps us stay aligned with evolving industry standards and customer needs.
Our expertise allows us to manufacture Straight Flute Taps in various sizes, thread types, and specifications, supporting diverse industrial applications and customer requirements.
We focus on building long-term relationships by delivering consistent quality, reliable supply, and technical support, positioning ourselves as a dependable manufacturing partner.

Consistent Quality Built to Meet Industrial and Export Requirements

Only carefully selected premium tool steels are used in the manufacturing of Straight Flute Taps. Strict incoming raw material inspection ensures consistent chemical composition, mechanical strength, and dependable cutting performance across all production batches.
Straight Flute Taps are produced using advanced CNC grinding technology to achieve accurate thread profiles, correct flute geometry, and sharp cutting edges. This precision is essential for producing clean, accurate threads with consistent results.
Each Straight Flute Tap undergoes a controlled heat treatment process to achieve the ideal balance between hardness and toughness. This controlled process improves wear resistance while reducing brittleness and the risk of premature tool failure.
Every batch of Straight Flute Taps is inspected using calibrated measuring instruments to verify thread accuracy, pitch consistency, and dimensional compliance with applicable standards, ensuring reliable fit and assembly performance.
Special attention is given to the surface finish and cutting edge sharpness of Straight Flute Taps. Smooth flute surfaces reduce friction, improve thread finish, and enhance tool life during repeated tapping operations.
Straight Flute Taps are subjected to systematic batch-level quality inspections to ensure consistency across large production volumes. This approach minimizes variation and ensures dependable performance in customer machining applications.
Quality-focused manufacturing practices for Straight Flute Taps help minimize internal defects and stress points. This significantly reduces the risk of tap breakage during operation, even under demanding working conditions.
All Straight Flute Taps are produced with proper batch traceability through internal records. Quality documentation and inspection details can be provided when required for customer audits or export compliance.
Strict adherence to defined quality standards ensures Straight Flute Taps deliver repeatable and reliable performance across different materials, machines, and operating conditions, meeting both domestic and international customer expectations.

Product FAQ's

1. What are Straight Flute Taps used for?

Straight Flute Taps are used for general-purpose threading in materials that produce short chips, such as cast iron, brass, and certain plastics, where their stable cutting design ensures easy control, accurate threads, and reliable performance in industrial machining applications.

2. What hardness range do Straight Flute Taps offer?

The hardness of Straight Flute Taps typically ranges from HRC 58 to 65. This hardness provides good wear resistance and longer tool life during threading operations. It helps maintain accurate and consistent thread quality under normal machining conditions.

3. What standards are available for Straight Flute Taps?

Straight Flute Taps are manufactured according to internationally recognized standards such as JIS, DIN 371 / DIN 376, and ANSI, ensuring consistent dimensions, accurate threading, reliable performance, and compatibility with global industrial machining requirements.

4. What size range is covered by Straight Flute Taps?

Straight Flute Taps are available in sizes ranging from M3 to M24. This wide size range supports small precision work as well as large industrial threading. It offers flexibility for multiple machining needs. It helps meet varied workshop and production requirements.

5. What surface treatment is provided on Straight Flute Taps?

Straight Flute Taps generally come with a bright surface finish. This treatment helps reduce friction during threading operations. It also improves chip flow and tool visibility during use. The finish supports smoother cutting and consistent thread quality.

6. Are Straight Flute Taps suitable for hand tapping?

Yes, Straight Flute Taps can be used for both machine tapping and hand tapping. Their balanced cutting action allows controlled threading. This makes them ideal for workshops and on-site applications. They also provide stable performance across different operating speeds.

7. Can Straight Flute Taps be customized?

Dedicated Impex Co. is a Straight Flute Taps manufacturer providing customization in size, thread form, and coating to support OEM and special requirements, helping meet specific industrial needs with export-ready solutions and reliable performance.

8. Why are Straight Flute Taps suitable when chips are broken into short or powder chips?

Straight Flute Taps are suitable when chips are broken into short or powder chips because chip accumulation is minimized during tapping. This reduces the risk of clogging inside the flutes. It ensures smoother cutting action and consistent thread quality. It also improves tool life and operational safety.

9. Can Straight Flute Taps handle repeated use?

DIC Tools is a Straight Flute Taps manufacturer producing durable taps for repeated operations. High-quality materials resist wear. Proper maintenance extends life. Straight Flute Taps export tools ensure long service.

10. Which international markets are covered for Straight Flute Taps export?

Dedicated Impex is a Straight Flute Taps manufacturer supplying products across Asia, Europe, the Middle East, Africa, and the Americas, ensuring consistent quality, strict regulatory compliance, strong quality control, and export-ready packaging for safe delivery to meet growing global industrial demand.
