HSS Keyway Broaches (Inch)

HSS Keyway Broaches (Inch)

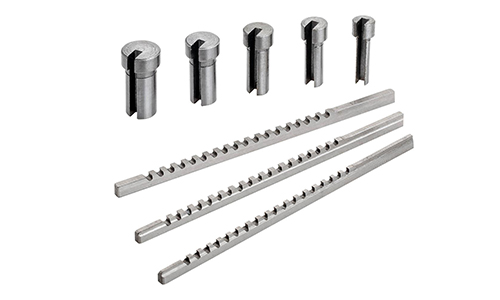

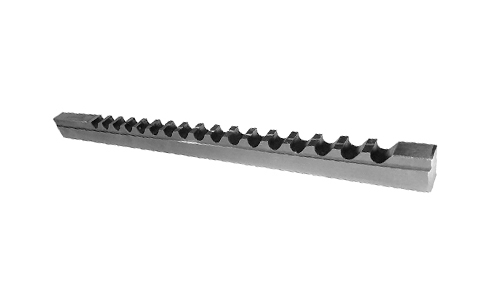

DIC is a Manufacturer and Exporter of keyway Broaches Inch Type made from High-Speed Steel. These are made to cut inch-size keyways. HSS Keyway is supplied with necessary shims. Our superior quality Broaches are available in Push as well as Pull Types. We manufacture Keyway Broaches using high-quality HSS material, which is acquired from leading suppliers in the industry. These are available in all types of surface coatings, including TiN, Ticn, Altin, or as per request. It is available in all standards per DIN, SES, ANSI, and other related standards.

Keyway Broaches are available in both American Standard and Metric Sizes. We can also supply these Broaches to fulfill our customer requirement of material and size.

  • Material: HSS M2, M35, M42, ASP 2030, ASP 2052, ASP 2062
  • Type: Inch Keyway Broach
  • Broach size: 1/16” to 1”
  • Tolerance: .0625”- 1.0025”
  • Approx. Dimensions: 1/8”x 5” to 1 x 20-1/4”
  • Can be supplied with all types of Coatings
  • Type: Push and Pull Type
Broach Size Approx dimension SHIMS REQ's Torlerance ND.2
1/16''1/8"x5"0.0625"-.6350"
3/32"1/8"x5"0.0938"-.0948"
1/8"1/8"x5"1.1252"-.1262"
3/32"3/16"x6-3/4"0.0937"-.0947"
1/8"3/16"x6-3/4"1.1252"-.1262"
5/32"3/16"x6-3/4"1.1564"-.1574"
3/16"3/16"x6-3/4"1.1877"-.1887"
3/16"3/16"x6-3/4"1.1877"-.1887"
1/4"3/16"x6-3/4"1.25.02"-.2512"
5/16"3/16"x6-3/4"1.3127"-.3137"
3/8"3/16"x6-3/4"2.3755"-.3765"
5/8"9/16"x13-7/8"1.3127"-.3137"
3/8"9/16"x13-7/8"2.3755"-.3765"
7/16"9/16"x13-7/8"2.4380"-.4390"
1/2"9/16"x13-7/8"3.5006"-.5016"
5/8"3/4"x15-1/2"4.6260"-.6270"
3/4"3/4"x15-1/2"5.7515"-.7525"
7/8"1"x20-1/4"6.8765"-.8775"
1"1"x20-1/4"71.0015"-1.00025"
