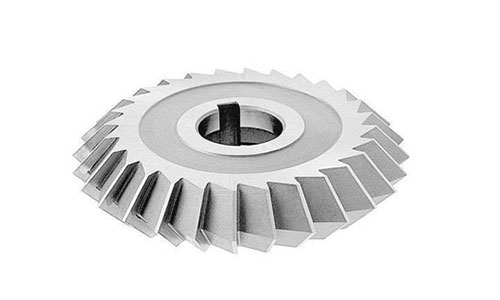

Equal Angle Cutter

DIC is a Manufacturer of Equal Angle Cutters in India, a cutter with teeth on Conical Surfaces with equal angles between the conical faces and the intersection of the two cones. The Nominal included angle of the equal angle cutter is the angle between the two conical sides used to mill "V" Grooves. These cutters are used for cutting various kinds of metals.

Our tools are made from high-quality raw materials, ensuring world-class quality and the best performance.

Product Description
Product Table

We provide all material and size ranges based on the customer's specific drawings and sizes. These cutters are exported to various countries worldwide.

Material : M2, M35, M42, ASP 2030 & ASP 2052
Standards : DIN,ISO, GB
Diameter : 56 to 100mm
Width : 8 to 32
Application/ Usage: milling V shape slots, serrations and chamfers.
Can be supplied with all types of PVD Coatings

Customization of tools is also available as per customer’s requirements.

Diameter	Width of Face	Bore	Anglen in Degrees
50	8	16	45°
50	10	16	60°
50	14	16	90°
63	5	22	18°
63	6	22	22°
63	7	22	25
63	8	22	30° 40°
63	10	22	45° 50°
63	14	22	60°
63	20	22	90°
80	8	27	18°
80	10	27	22°
80	11	27	25°
80	12	27	30° 45° 50°
80	18	27	60°
80	22	27	90°
100	10	32	18°
100	12	32	22°
100	13	32	25°
100	14	32	30° 40°
100	18	32	45°
100	25	32	60°
100	32	32	90
