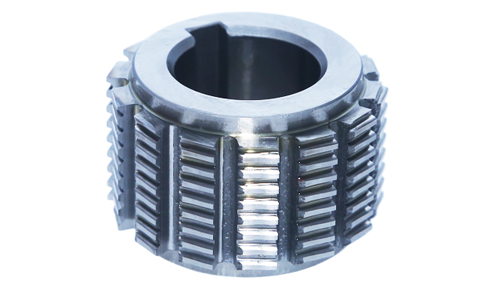

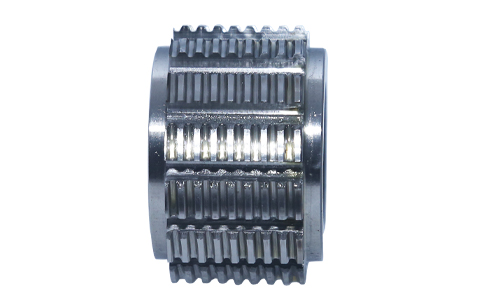

Timing Pulley Hob Cutter

Timing Pulley Hob Cutter

DIC is a Manufacturer and Exporter of Timing Pulley Hob Cutters, available in standard and non-standard profiles as per requirement. These are made from HSS material in grades M2/S590/ASP2052/ S390/ S290/ ASP 2030 / M35 with all PVD Coatings. The hobs can be supplied in pitch ranges from 2.032mm or 1/5" and with accuracy class AAA, AA, A as per DIN 3968 with straight-sided or involute teeth.

Timing Pulley Hob Cutter profile is involute as parallel side spline, chain sprocket wheel, chain sprocket wheel, timing belt wheel, serration, cycloid gear, and so on. These hobs are available in two types: Hole type and Shank Type.

We can also supply Hob Cutters in standard and customized designs per client requirements.

  • Involute Spline Standards: BS4548, DIN7721, ISO5294, ISO5296, ISO17396
  • Supplied with all types of PVD Coatings.
  • HTD
  • Involute profiles like ‘T’ & ‘S’
  • Linear pulleys like MXL, XL, L, H, XH, XXH
Timing Pulley Profile Belt Type Common Arrange Size
S.T.DMXL(2.032)10-23T 24-R32×25×13
XL(5.08)10-R55×50×22
L(9.525)10-R55×50×22
H(12.7)14-19T 20-R70×60×27
XH(22.225)18-R85×85×32
XXH(31.75)18-R90×90×32
H.T.D2M-50×40×22
3M9-15T 16-25T 26-80T 81-R50×40×22
5M11-16T 17-31T 32-79T 80-200T50×50×22
8M18-27T 28-40T 41-89T 90-200T70×65×27
14M28-40T 41-89T 90-R75×75×27
20M--
S.T.S2M--
3M16-25T 26-80T50×40×22
5M20-24T 25-40T55×60×27
8M20-24T 25-31T 32-48T 49-120T70×65×27
14M28-36T 37-51T 52-100T 101-200T75×75×27
20M--
A.T.(D.T)A(T5)10-14T 15-20T 21-R55×45×22
T1012-15T 16-20T 21-R65×60×27
T2015-20T 21-R80×80×32
(D)T513-17T 18-25T 26-40T 41-R55×45×22
T1012-15T 21-R65×60×27
T2015-20T 21-R80×80×32
G.T.2GT16-25T 26-80T-
3GT25-26T 26-50T-
5GT17-31T 32-79T-
8GT18-28T 29-89T-
