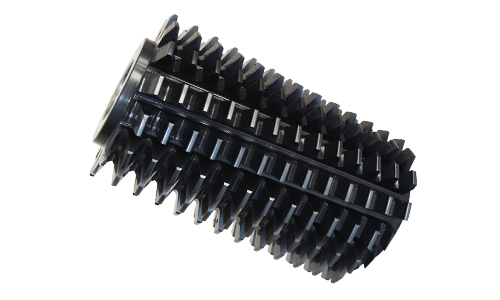

Gear Hob Cutters

Gear Hob Cutters

We are a Manufacturer of Gear Hob Cutters in India, widely used in automobiles, construction, and machinery industries. Gear Hob Cutters are used to generate gear tooth profiles in any material. The accuracy class for Gear Hob Cutters is AAA, AA, A & B as per DIN3968. These are available in all kinds of PVD Coatings.

We manufacture these gear hob cutters using high-quality raw materials for their efficient performance.

We can also produce in multi-gashes and multi-start. We supply all standard as well as non-standard Gear Hob Cutters.

  • Materials: S390/ASP2052/ASP2030/S290/ASP2060/S590/M35/M2
  • Types: Bore & Shank
  • Maximum Diameter: 250mm
  • Maximum Length: 250mm
  • Module Range: 0.2 to 25 Module
  • PVD Coatings: TiN, Alcrona Pro & Altensa
  • Standards: DIN 3972, DIN 867, DIN 8000, IS8731, ISO 53, GOST 6637, GOST 9324, GOST 13755
  • Note: Special features like Topping, Semi Topping, Protuberance, Pre-Grinding, Pre-Shaving etc. can also be provided as per Customer’s requirement.

Product Specification in Module:
Module Diameter mm Overall Length Bore dia.
0.5502222
0.75B502222
1503122
1.25503122
1.5563822
1.75563822
2634627
2.25705627
2.5705627
2.75705627
3806932
3.25806932
3.5806932
3.75907822
4907832
4.5907832
51008832
5.51008832
611510832
6.511510840
711510840
812513840
912513840
1014017040
