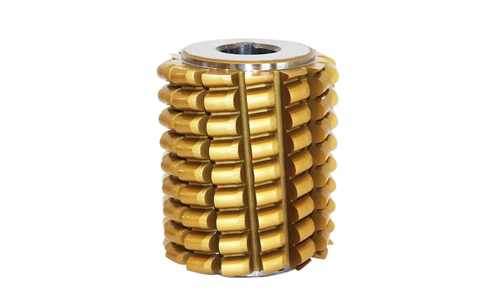

Chain Sprocket Hobs

We are a Manufacturer and Exporter of Chain Sprocket Hobs, designed to produce accurate finishes on several tooth forms. Chain Sprocket hobs generate gears of maximum accuracy with different profiles. The material used for these hobs is S390/ASP2052/ASP2030/S290/ASP2060/M35/M42/M2. The accuracy class is AAA/AA as per DIN 3968, conforming to ANSI, ASA, IS, DIN, and JIS-B.

Product Description
Product Table

DIC provides high-quality Chain Sprocket Hobs as per customer requirements.

Standards: ANSI, ASA, IS, DIN, JIS-B
Types: Topping & Non-topping
Threads: Single or multi-threads for high-speed cutting.
Sprocket Pitch Range: 3.5 inch or 90mm

Pitch For Chain	Roll Dia.	Out Dia	Overall Length	Bore Dia.
6	4	70	60	27
6.35	3.3	70	60	27
8	5	70	60	27
9.525	5.08	70	60	27
9.525	6.35	70	60	27
12.7	7.77	80	70	27
12.7	8.51	80	70	27
15.875	10.16	90	85	32
19.05	11.91	100	100	32
25.4	15.88	115	115	32
31.75	19.05	125	135	32
38.1	22.23	140	150	40
44.45	25.4	150	180	40
50.8	28.58	160	200	40
57.15	35.71	180	240	40
63.8	39.68	180	240	40
76.2	47.63	240	320	60
