Spline Gauges

We are Exporter of Spline Gauges in India, designed according to the tolerances "actual" and "effective." These are used to check the effective tooth thickness and form diameter of the splined shaft conformance to dimensional specifications.

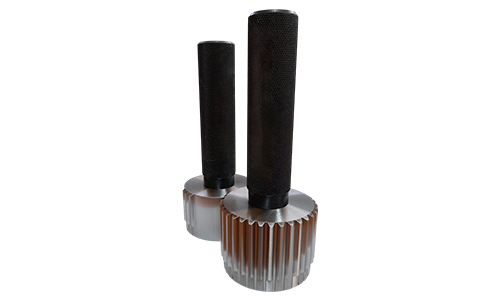

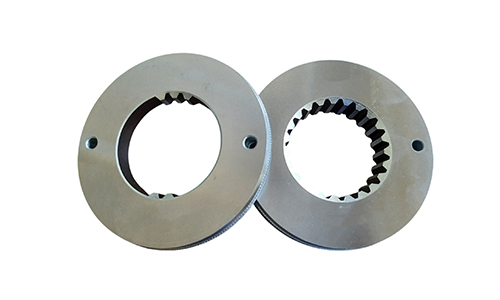

We provide Spline Plug Gauges and Spline Ring Gauges used to check internal and external splines. These gauges are available involute, straight-sided, angular-sided, parallel-sided, and helical. The gauges are available in various specifications and can also be customized per our customer's specific requirements. We produce gauges using advanced technology with the best quality raw material.

We use the finest quality raw material to ensure the sturdiness and affability of the Gauges for adverse conditions. These are the best inspection tools to check external and internal splines.

Technical Specification
Tool Name	Spline Gauges
Gauge Type	Go / No-Go (Plug & Ring)
Spline Type	Involute / Straight Spline
Diameter Range	Ø5 mm – Ø200 mm
Module Range	0.5 – 10 module
Pressure Angle	30° (standard)
Material	Hardened Tool Steel
Hardness	58–66 HRC
Standards	ISO, DIN, ANSI/AGMA, and JIS
Application	Checking spline form, pitch & fit
Customization	Available as per customer requirement

Precision inspection tools engineered for reliable spline fit and performance

Our Spline Gauges support involute splines, straight-sided splines, and serrations, enabling accurate inspection across a wide range of mechanical power transmission applications and international manufacturing standards.
Each spline tooth profile is precision ground and carefully finished to ensure accurate contact with mating parts, delivering consistent inspection results and minimizing variation during repeated use on the shop floor.
Manufactured from premium tool steel or alloy steel and heat treated to optimal hardness levels, these gauges offer excellent wear resistance, dimensional stability, and long operational life in high-volume inspection environments.
Spline Gauges are manufactured with strict control over pitch diameter, major diameter, and minor diameter, ensuring proper centering, torque transmission capability, and reliable mating performance in assembled components.
Each gauge is permanently marked with relevant details such as spline type, number of teeth, module or DP, fit class, and Go or No-Go identification for easy recognition and error-free inspection.
Designed to maintain dimensional accuracy under varying shop-floor conditions, Spline Gauges perform reliably despite temperature changes, handling stress, and repeated inspection cycles.
Our Spline Gauges are manufactured in accordance with ISO, DIN, ANSI, and customer-specific standards, ensuring global acceptance and seamless integration into quality assurance systems.

Proven capability in designing and manufacturing high-precision Spline Gauges for demanding industrial applications

With deep-rooted expertise in spline inspection technology, our team understands the functional relationship between spline geometry, fit, and torque transmission, enabling us to design and manufacture Spline Gauges that deliver reliable, repeatable, and application-accurate inspection results.
Our in-house manufacturing facilities are equipped with advanced machining, heat treatment, and precision grinding systems, allowing us to produce Spline Gauges with tight tolerance control, accurate tooth profiles, and consistent quality across standard and custom designs.
Each Spline Gauge is subjected to stringent quality checks including dimensional inspection, hardness verification, and functional testing, ensuring that every gauge meets defined technical specifications and performs consistently throughout its service life.
We specialize in developing Spline Gauges for complex spline forms, special tooth geometries, non-standard modules, and custom fit requirements, supporting customers with challenging inspection needs across specialized engineering applications.
Our technical experts work closely with customers to understand load conditions, centering methods, backlash requirements, and assembly functions, ensuring the supplied Spline Gauges are precisely matched to real-world operating and performance demands.
We have extensive experience supplying Spline Gauges for automotive transmissions, gearboxes, machine tools, and heavy engineering components, where precision spline fit and consistent inspection accuracy are critical to product performance and reliability.
Our Spline Gauges are manufactured, marked, and packaged in line with international export standards, ensuring product integrity, protection during transit, and acceptance in global supply chains.
We position ourselves as a long-term technical partner by offering dependable Spline Gauges, responsive engineering support, and continuous improvement, helping customers achieve sustained quality and operational efficiency.

Customized spline gauging solutions designed for OEM identity and market success

We manufacture Spline Gauges strictly as per customer drawings, approved samples, or detailed technical specifications, including special tooth forms, non-standard modules, fit types, centering methods, and inspection lengths tailored to specific application requirements.
OEM customers can choose permanent engraving or laser marking on spline gauges with their brand name, logo, part number, and size details, helping reinforce brand identity and ensuring easy product recognition in global markets.
Customized packaging solutions for spline gauges, such as branded wooden boxes, plastic cases, foam inserts, or export-grade cartons, are offered to ensure safe handling, damage prevention, and a professional brand presentation.
We support flexible OEM order quantities for spline gauges, ranging from prototype development and pilot batches to full-scale production volumes, allowing customers to scale their sourcing smoothly as demand and market reach increase.
On request, spline gauges can be supplied with special surface finishes or protective coatings designed to enhance corrosion resistance, reduce wear, and extend service life in demanding industrial and high-usage environments.
We ensure strict confidentiality in the OEM manufacturing of spline gauges, safeguarding customer drawings, specifications, and intellectual property, and maintaining trust throughout long-term private-label manufacturing partnerships.
OEM spline gauges are manufactured in compliance with relevant international or customer-specified standards, ensuring smooth acceptance across domestic and export markets without the need for additional qualification processes.
Our OEM programs for spline gauges are designed for long-term collaboration, offering consistent quality, dependable delivery schedules, and responsive technical support to help customers build and grow strong, reliable brands.

Product FAQ's

1. What types of spline gauges are available?

Dedicated Impex Co. offers GO and NO-GO spline plug gauges for internal splines and spline ring gauges for external splines. Types include involute splines, straight-sided splines, serrations, and special profile splines. Gauges are manufactured according to standard or customer-defined spline geometry and tolerance classes.

2. What industries commonly use spline gauges?

Spline gauges are widely used in automotive, aerospace, gearbox manufacturing, heavy engineering, machine tools, and power transmission industries. They ensure accurate spline engagement in drivetrain components, transmission systems, and torque-carrying assemblies requiring precision inspection.

3. How do spline gauges work?

Spline gauges operate on a functional GO/NO-GO principle. The GO gauge checks the maximum material condition to ensure proper spline fit, while the NO-GO gauge verifies that dimensions do not exceed minimum material limits. This fast pass-fail system ensures consistent production quality.

4. What standards do spline gauges follow?

Spline gauges are manufactured in accordance with ISO, DIN, ANSI/AGMA, and JIS standards. These standards define spline tooth form, module or diametral pitch, pressure angle, and tolerance classes, ensuring global compatibility and interchangeability.

5. What is the dimensional range of spline gauges?

Spline gauges are available in diameters ranging from Ø5 mm to Ø200 mm and support module sizes from 0.5 to 10. These dimensional ranges ensure suitability for checking spline form, pitch, and fit.

6. How accurate are spline gauges?

Spline gauges are manufactured with micron-level dimensional accuracy. Precision grinding and heat treatment processes ensure high repeatability, stable geometry, and long service life, even in demanding production inspection environments.

7. Can spline gauges be customized for special applications?

Yes, spline gauges can be customized in terms of spline profile, module, DP, number of teeth (up to 200), tolerance class, marking, and inspection standard. Special designs can be manufactured according to OEM drawings or application-specific requirements.

8. What is the role of spline gauges in load capacity assurance?

Spline gauges indirectly support load capacity by verifying accurate spline geometry. Proper tooth profile and fit ensure correct torque transmission, prevent stress concentration, and reduce the risk of mechanical failure under load conditions.

9. Can spline gauges be manufactured as per OEM drawings?

Spline gauges can be produced strictly according to OEM technical drawings. All dimensional tolerances, spline parameters, and inspection requirements are followed precisely to ensure compatibility with existing production systems and assemblies.

10. What export and quality compliance do spline gauges meet?

Spline gauges comply with international standards such as ISO, DIN, ANSI/AGMA, and JIS. Controlled manufacturing processes, calibration traceability, and inspection reports ensure smooth acceptance in global automotive, aerospace, and heavy engineering markets.
