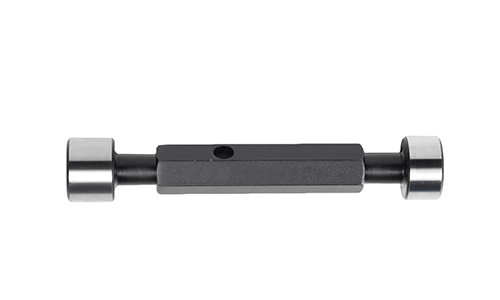

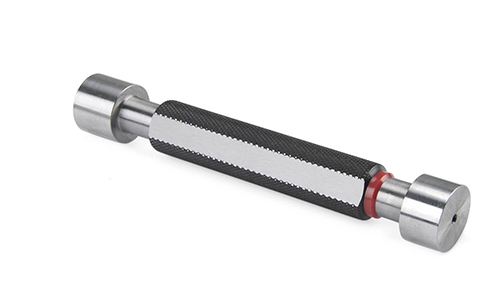

Carbide Plug Gauges

We are a Manufacturer and Exporter of Carbide Plug Gauges in India, made from special grade hot pressed submicron grained tungsten carbide material that is ground and precision lapped to ensure the highest quality. Carbide Plug gauges are powder coated to make them corrosion-resistant and provide long-term performance to customers.

The wear-resistant and super smooth carbide finish is a suitable option where precision gauging is needed. The gauges can be supplied to DIN and ANSI standards. We can make these carbide plug gauges in several specifications, depending upon the need of the customers. We produce gauges using advanced technology with the best quality raw material.

Technical Specification
Product Name	Carbide Plug Gauges
Gauge Type	Go / No-Go
Measuring Range	Ø0.5 mm – Ø50 mm
Material	Tungsten carbide (gauge), aluminum or steel (handle)
Hardness	58–62 HRC
Accuracy	±0.001 mm to ±0.002 mm
Standards	ISO, DIN, ANSI, IS
Surface Finish	Precision ground & lapped (smooth finish)
Application	Internal diameter inspection
Customization	Available as per requirement

Precision That Lasts Longer Than Conventional Gauges

Carbide Plug Gauges are engineered using high-density tungsten carbide, making them extremely resistant to abrasion, deformation, and surface wear. This ensures consistent measurement accuracy over long inspection cycles, even in high-volume production environments where steel gauges fail prematurely.
Due to their low coefficient of thermal expansion, Carbide Plug Gauges maintain dimensional integrity even with temperature variations. This stability minimizes inspection errors and makes them ideal for precision-critical components in automotive, aerospace, and high-speed machining applications.
Each Carbide Plug Gauge is precision ground and lapped to achieve an ultra-smooth surface finish. This reduces friction during insertion, prevents bore damage, and improves repeatability, making the gauge reliable for both manual and automated inspection systems.
Carbide Plug Gauges are manufactured in accordance with ISO, DIN, ANSI, and IS standards. This ensures compatibility with global inspection practices and makes them suitable for export-oriented manufacturers requiring standardized quality assurance tools.
These gauges are supplied in GO and NO-GO combinations to quickly verify minimum and maximum bore limits. This binary inspection method improves shop-floor efficiency while maintaining strict compliance with dimensional tolerance requirements.
Carbide Plug Gauges exhibit strong resistance to rust, cutting fluids, and chemical coolants commonly used in machining. This ensures reliable performance and dimensional accuracy even in harsh industrial environments.
Because Carbide Plug Gauges wear significantly slower than steel gauges, they require fewer replacements and recalibrations. This results in lower total cost of ownership and improved uptime in quality inspection processes.
Carbide Plug Gauges can be manufactured in special sizes, tolerances, and geometries to meet unique inspection needs. This flexibility makes them suitable for precision components with non-standard internal dimensions.

Versatile Internal Diameter Inspection Solutions Across Manufacturing Sectors

Carbide Plug Gauges are extensively used to inspect drilled, bored, honed, and reamed holes in automotive, aerospace, and engineering components. Their high dimensional accuracy ensures reliable verification of internal diameters during both intermediate machining and final inspection stages.
In automotive and large-scale manufacturing environments, Carbide Plug Gauges support rapid, repeatable inspection on production lines. Their superior wear resistance allows continuous use without loss of accuracy, making them ideal for high-output factories and export-oriented production units.
Carbide Plug Gauges play a critical role in final inspection departments across industries such as automotive, aerospace, and heavy engineering, ensuring components meet specified tolerances before dispatch and helping manufacturers reduce rejection rates and customer quality complaints.
Widely used in CNC machining and precision job shops, Carbide Plug Gauges enable in-process bore inspection. Operators rely on these gauges to monitor dimensional accuracy, control machining offsets, and maintain consistent quality throughout long production cycles.
Due to their exceptional dimensional stability and long-term accuracy, Carbide Plug Gauges are commonly used as reference gauges in tool rooms and calibration departments serving industries such as defense, aerospace, and precision engineering.
Carbide Plug Gauges are well-suited for integration into automated inspection fixtures and robotic quality systems used in automotive, electronics, and mass manufacturing plants, thanks to their durability, consistency, and resistance to wear.
Carbide Plug Gauges support manufacturers supplying components to international OEMs by ensuring compliance with global standards. Their reliability, traceability, and consistent accuracy make them suitable for industries focused on exports and international quality certifications.

Accuracy, Reliability, and Long-Term Value

Dedicated Impex specialize in manufacturing high-accuracy Carbide Plug Gauges using advanced grinding and lapping processes to ensure consistent quality and reliable inspection performance.
Each Carbide Plug Gauge undergoes rigorous inspection and calibration checks, ensuring compliance with international standards and long-term dimensional stability.
Dedicated Impex offer fully customized Carbide Plug Gauges in terms of size, tolerance, marking, and configuration to suit specific customer requirements.
Only high-quality, fine-grain carbide materials are used to ensure superior hardness, wear resistance, and extended gauge life.
Our Carbide Plug Gauges are manufactured in line with ISO, DIN, ANSI, and IS standards, making them suitable for global applications.
We provide calibration support with traceability, helping customers meet audit, compliance, and quality certification requirements.
The extended wear life of our Carbide Plug Gauges reduces replacement frequency, offering better return on investment compared to conventional steel gauges.
Each gauge is securely packed to prevent damage during storage and transportation, ensuring it reaches customers in perfect condition.
Our team provides technical guidance on gauge selection, usage, and maintenance to ensure optimal performance throughout the product lifecycle.
With a strong reputation for quality and reliability, we serve both domestic and international customers seeking dependable Carbide Plug Gauges.

Product FAQ's

1. What are Carbide Plug Gauges used for?

Carbide Plug Gauges are used to check the accuracy of internal diameters in machined components. They provide fast, reliable GO and NO-GO inspection to confirm whether bores meet specified dimensional tolerances.

2. Why are Carbide Plug Gauges better than steel plug gauges?

Carbide Plug Gauges offer significantly higher hardness, superior wear resistance, and longer service life compared to steel gauges. This ensures consistent accuracy over extended use, especially in high-volume and precision manufacturing environments.

3. What materials are Carbide Plug Gauges made from?

Carbide Plug Gauges are manufactured from high-grade tungsten carbide, known for its extreme hardness, low thermal expansion, and excellent resistance to wear, corrosion, and deformation during continuous inspection operations.

4. What accuracy levels can Carbide Plug Gauges achieve?

Carbide Plug Gauges are manufactured to achieve high precision, typically within ±0.001 mm to ±0.002 mm, depending on size and tolerance class, making them suitable for tight-tolerance and critical dimensional inspections.

5. Which industries commonly use Carbide Plug Gauges?

Carbide Plug Gauges are widely used in automotive, aerospace, defense, CNC machining, oil & gas, power generation, medical devices, and precision engineering industries where accurate internal diameter inspection is critical.

6. Can Carbide Plug Gauges be customized?

Yes, Dedicated Impex offers fully customized Carbide Plug Gauges in terms of size, tolerance class, length, marking, and configuration. These custom solutions are designed to meet specific inspection requirements for non-standard bores and specialized industrial applications across diverse manufacturing sectors.

7. What standards do Carbide Plug Gauges comply with?

Carbide Plug Gauges are manufactured according to international standards such as ISO, DIN, ANSI, and IS, ensuring compatibility with global inspection practices and acceptance in domestic and export markets.

8. Are Carbide Plug Gauges suitable for hardened components?

Yes, Carbide Plug Gauges are ideal for inspecting hardened and finished components. Their high hardness prevents gauge damage while ensuring accurate bore measurement without compromising the component surface.
